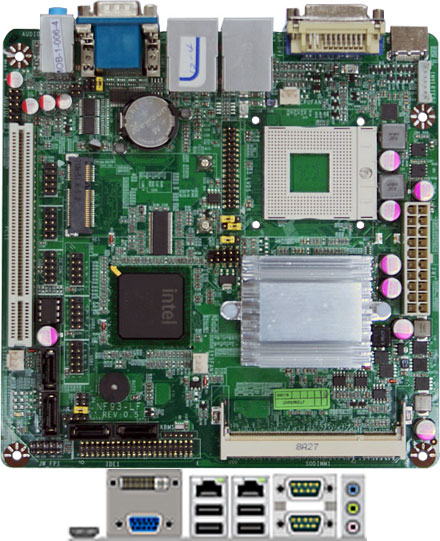

Jetway NF93R-LF (for Core2Duo FSB1066 Penryn Mobile, HDMI, DVI, 2x LAN)
PRODUCT IS CURRENTLY NOT AVAILABLE !
- Mini-PCI Express
- 2x LAN !
- 2x RS232 !
- DirectX 10 !
- INTEL®GM45 +ICH9M chipset
- Build-in INTEL® GMA X4500M HD Graphics Core(For DX10)
- Supports INTEL® 45nm Penryn Mobile Processors
- Supports 2 * Gigabit LAN
- Integrated ALC888 HD Audio CODEC with 6-CH
- Onboard 18-bit dual channel LVDS connector
- Onboard DVI-D/HDMI port
- Support Watch dog Technology
- Mini-ITX Form Factor(170mm x 170mm)
Scope of supply:
- Jetway NF93-LF Mainboard
- CPU cooler/heatsink
- Driver CD
- Manual
- IDE-44pin Cable
- SATA Cable
- I/O Shield
- SP2 Cable
- Thermal Grease
- HDTV PCI Slot ad
[more]
| CPU | Intel Core Duo Mobile |
| Graphics | Intel GMA X4500HD |
| Formfactor | ITX (17x17cm) |
| RAM | 2x SO-DDR-II |
| Audio | Realtek 888 HD Codec |
| Base | Intel ITX |
| USB | 10x USB2.0 |
| Firewire | -- |
| IDE/SATA | 1x IDE, 4x SATA (RAID) |
| LAN | 2x 10/100/1000 |
| Parallel | -- |
| Serial | 5x |
| yes | TV-Out |
| yes | PCI |
| yes | Mini-PCI |
| yes | IDE |
| yes | DVI |
| yes | 800x480 Resolution |
| no | Passive-Cooling |
| no | PCI-Express |
| no | PCMCIA |
| yes | SATA |
| yes | CPU changeable |
| no | Compact Flash |
RAM :
Compatible enclosures
M200-LCD Enclosure
M350 Mini-ITX enclosure
MHero-L-B Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-L-R Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
