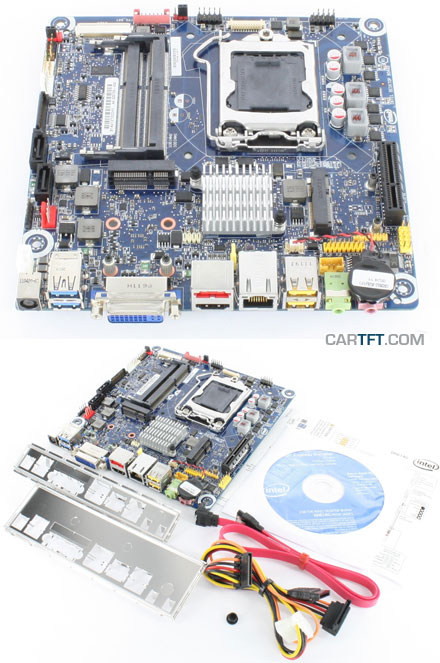

The Intel® Desktop Board DH61AG powered by the 2nd generation Intel® Core™ processors in the LGA1155 package offers Intel® HD Graphics with best-in-class media processing features in an innovative low z-height, Thin Mini-ITX form factor. Fully compatible with low height components such as SO-DIMMs and Full and half length PCI Express* mini-cards, the DH61AG also supports premium features such as SuperSpeed USB3, eSATA, and Hi Current/Fast charging USB 2.0 ports. Full display output support with HDMI* and DVI-I is complemented by flexible eDP or LVDS flat panel display support. Combination of low height components, premium features, and an external power supply make the DH61AG the perfect solution for high performance AIO systems, Tiny FF systems, and Home Theatre PC systems.

Name	DH61AG
Form Factor	(Thin-)Mini-ITX Mainboard
CPU	Intel Core i3/i5/i7 CPU Series Socket LGA1155
Chipset	Intel H61 Express Chipsatz (B3)
Graphics	Intel HD100/HD200
Memory	2 x So-DDR3 DIMM, 1333/1066 Mhz, up to 16GB
Power	DC-In 19.5V (7.9A max.)
Connectors (rear)	2 x USB 2.0 2 x USB 3.0 1 x Audio 1 x 10/100/1000 Mb/s Ethernet (Intel 82579V) 1 x DVI-I (Analog+Digital) 1 x HDMI 1 x eSATA
SATA	2x SATA 3GB/s
Audio	10-channel Intel High Definition (Intel HD Audio)
Connectors (internal)	8x USB 2.0 3x SATA (3GB/s) 1 x SPDIF 1 x PCIexpress 2.0 x4 1 x Mini-PCIe (Half length) 1 x Mini-PCIe (Full length)
Included	- DH61AG Mainboard - 2x I/O ATX rear plate - 1x SATA cable - 1x Power adapter cable - Quickstart-Guide - Drivers CD
