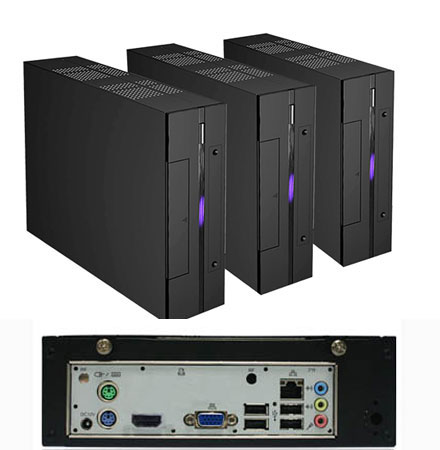

Jetway JBC200C9K-2500-B (Intel Cedar Trail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JBC200C9K-2500-B (Intel Cedar Trail-D)

  • INTEL® Cedar Trail-D Processor D2500 + NM10 Chipset
  • Support 2 * DDR3 800/1067MHz Single CH up to 4GB
  • Support 2 * Serial ATAII (3Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 6-CH
  • Supports 1 * Realtek RT8111EVL Gigabit LAN
  • Support Watch dog Technology
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • Small size and Easy to use


Share

RAM :
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
Model No:     JBC200C9K-2500-B
Motherboard Specification
CPU INTEL® Cedar Trail-D Processor D2500 CPU (1.86GHz)
Chipset INTEL®NM10 Express chipset
Memory 2 * DDR3 1067MHz Single CH SO-DIMM up to 4GB
LAN 1 * RTL8111EVL PCI-E Gigabit LAN
Audio Realtek ALC662 6-Channel HD Audio
Storage 2 * Serial ATA2 3Gb/s connectors
USB Embedded 8 * USB 2.0/1.1
BIOS AMI 16MB DIP Flash ROM
Form Factor Mini-ITX Form Factor, M/B 170 x 170mm
Barebones Specification
Product size 210(W) x 258(D) x 65(H)mm
Specs Exposed 1 x Slim ODD Drive Bay and 1 x 2.5” HDD Drive Bay (Only support SATA 2.5” HDD)
Colors Black Color
Cooling Fan Side: 6cm Fan SLEEVE x 1
Front I/O Port 2 x USB(V2.0)
1 * Power button and 1 * HDD LED
Rear I/O Port 4 * USB 2.0/1.1 ports
1 * PS2 KB/MS port
1* RJ-45 ports
1 * Audio I/O port ( Line-in, MIC and Line-out )
1 * VGA & HDMI port
Power supply 12V DC in
Standard Accessory
    60W AC-DC Adapter x1 and Power Cord x1 Stand x 4 and SATA cable x 1
Functional Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK
Packing Color Box Dimension：417(W) x 137(D) x 296(H)mm
Gross Weight：3.65KG
Net Weight：3.02KG
Certificate CE,FCC For Barebones
CE,FCC,TUV,UL,CCC,CB For Power Adapter
