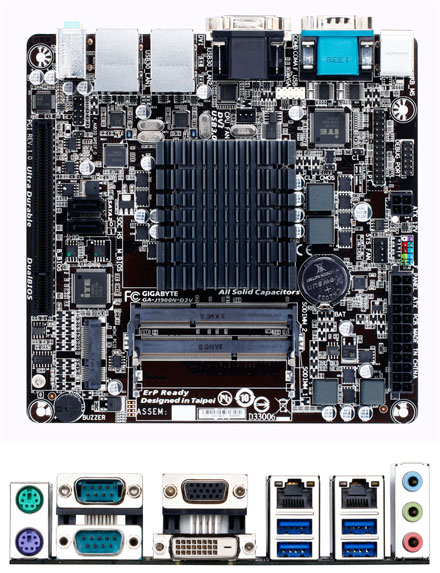

Gigabyte GA-J1900N-D3V (Intel Celeron J1900 BayTrail 4x2.0Ghz, 2x LAN)

PRODUCT IS CURRENTLY NOT AVAILABLE !

3D 360° View

Intel Celeron BayTrail !
Dual Gigabit LAN !
Win7, Win 8 !

Built-in Intel^® Celeron™ J1900 (2.0 GHz) quad-core processor
GIGABYTE Ultra Durable™ 4 Plus Technology
All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
Dual LAN with high ESD Protection
GIGABYTE UEFI DualBIOS™
DVI-D, D-SUB ports on rear panel
Ample USB 3.0 ports with GIGABYTE 3x USB power
GIGABYTE On/Off Charge™ for USB devices
Mini PCI-E expansion slot supports wireless networking cards
PCI expansion slot supports legacy interface cards

CPU	Intel Celeron J1900 4x2.0Ghz
Graphics	Intel GMA
Formfactor	ITX (17x17cm)
RAM	2x SO-DDR-III
Audio	Realtek ALC887 7.1
Base	Intel ITX

USB	2x USB2.0, 4x USB3.0
Firewire	--
IDE/SATA	2 x SATA 3Gb/s
LAN	2x 10/100/1000
Parallel	1x
Serial	2x

no	TV-Out
yes	PCI
yes	Mini-PCI
no	IDE
yes	DVI
yes	800x480 Resolution

yes	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

RAM :

SSD (mSATA):

OS:

Build/Install:

Specifications
Data sheets and downloads
Customer ratings
Assembling options

CPU	Built in with an Intel^® Celeron^® Quad-Core J1900 SoC (2.0 GHz) * Do not disassemble the onboard SoC and the heatsink by yourself to avoid damage to these components. 2 MB Cache
Memory	2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory * If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket. Dual channel memory architecture Support for DDR3/-L 1333 MHz memory modules Support for non-ECC memory modules
Onboard Graphics	Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 2560x1600 1 x DVI-D port, supporting a maximum resolution of 1920x1080 * The DVI-D port does not support D-Sub connection by adapter.
Audio	Realtek^® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
LAN	2 x Realtek^® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots	1 x PCI slot 1 x Mini PCI Express x1 slot (The Mini PCI Express slot conforms to PCI Express 2.0 standard.) (For Mini-PCIE card/no mSATA card)
Storage Interface	Integrated in the SoC: 2 x SATA 3Gb/s connectors
USB	Integrated in the SoC: 2 x USB 2.0/1.1 ports (available through the internal USB header) SoC + Renesas^® uPD720210 USB 3.0 Hub: 4 x USB 3.0/2.0 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 2.0/1.1 header 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x debug card header
Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 2 x serial ports 4 x USB 3.0/2.0 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for @BIOS Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. Support for ON/OFF Charge
Bundle Software	Norton^® Internet Security (OEM version) Intel^® Smart Connect Technology
Operating System	Support for Windows 8.1/8 32-bit/64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, please update the latest BIOS and drivers.
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
