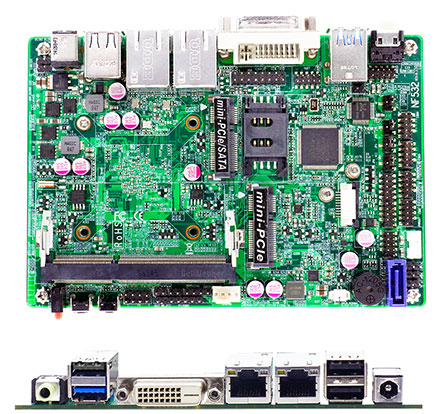

Jetway NF532-2930 (Intel Bay Trail)

Jetway NF532-2930 (Intel Bay Trail)

  • Intel® Bay Trail D/M/I Processor
  • Support 1 * DDR3L 1333/1066MHz Single/Dual CH up to 4GB/8GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • 1 * SIM card holder
  • Support DVI-D Output
  • Supports 2 * Realtek RT8111G PCIe Gigabit LAN
  • Support CPU Smart FAN
  • Support Watch Dog Timer 0~255 sec
  • +9~24V DC-In PWR jack
  • Dimension: 148 * 102mm
  • 3.5” SBC Form Factor


Share

249.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
 Form Factor
Dimensions - 3.5” SBC ( 148 * 102 mm )
 Processor System
CPU - Intel® Bay Trail D/M/I Processor (default N2930 Celeron Processor)
Core Number - BY CPU
Max Speed - BY CPU
L2 Cache - BY CPU
Chipset - SoC
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 1 (full size, shared with mSATA) + 1 (half size)
mSATA - 1 (shared with full size Mini PCIe)
PCIe - 0
CFast Card Socket - 0
CF Card Socket - 0
 Memory
Technology - Single/Dual Channel DDR3L 1333MHz SDRAM (By CPU)
Max. - 4GB/8GB
Socket - 1 * SO-DIMM
 Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 1 (internal)
LVDS - 0
HDMI - 0
DVI-D - 1
DisplayPort - 0
MultiDisplay - Yes (Dual Display)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Realtek RTL8111G
Connector - 2 * RJ 45
 SATA
Max Data Transfer Rate - 1 * SATAII (3.0Gb/s)
 Rear I/O
VGA - 0
DVI-D - 1
HDMI - 0
DisplayPort - 0
Ethernet - 2
USB - 4 (3 * USB 2.0 + 1 * USB 3.0)
Audio - 1 (Line -out)
Serial - 0
eSATA - 0
PS2 - 0
DC-input - 1
 Internal Connector
USB - 4 ( 4 * USB 2.0 via 10pin header )
PS2 - 1
LVDS / inverter - 0
VGA - 1
Serial - 4 (3 * RS-232, 1 * RS232/422/485 with 5V/12V selectable header)
SATA - 1 * SATAII (3.0Gb/s)
mPCIe - 1 (full size, shared with mSATA) + 1 (half size)
Parallel - 0
mSATA - 1 (shared with mPCIe)
CIR - 0
SIM card holder - 1
GPIO 8-bit - 4in / 4 out
Chassis intrusion - 1 (via 2pin header)
Audio Header - 1 ( Line-out & MIC )
HDMI-SPDIF - 1
SMBUS/ I2C - 1
AT mode jumper - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - +9~24V DC-In (2-pin PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0℃– 60℃
- Storage: -20℃– 85℃
