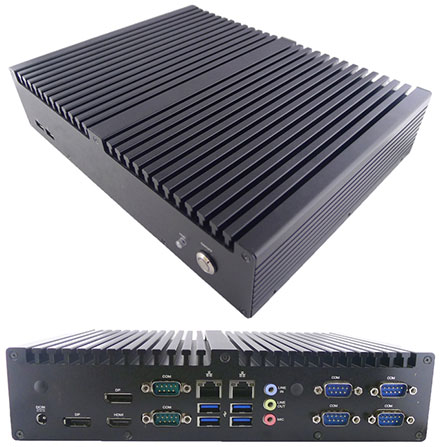

Jetway JBC501F697-Q170-B (Intel Q170 Express)

Jetway JBC501F697-Q170-B (Intel Q170 Express)

  • Fanless Black Aluminum Enclosure
  • Intel LGA1151 Socket 6th/7th Gen. Pentinum, Core i3/i5/i7 35W Processors
  • Supports DDR4-2133MHz SODIMM up to 32GB
  • Supports up to 3 Independant Displays (HDMI * 1 & DP * 2)
  • 1 * 2.5” SATA3 6Gb/s Internal Drive Bay
  • 1 * Full-size mSATA/Mini PCIe Shared Slot
  • Support TPM function (option)
  • 4 * USB 3.0 Ports, 2 * USB 2.0 Ports
  • 6* Serial Ports (COM2 support RS232/422/485)
  • Watchdog Timer, 19V/120W AC Adapter
  • Includes Wall Mount bracket and DIN Rail Clips
  • 264 (W) x 199.4 (D) x 58 (H) mm


Share

619.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

OS:

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
MB Model JNF697-Q170 / MINI-ITX
Part No HBJC501F697-Q170-B (non-WIFI)) HBJC501F697W-Q170-B (WIFI)
BIOS AMI 16MB SMT Flash ROM
CPU/Chipset INTEL® LGA 1151 Socket 6th/7th Gen. Core i7 / i5 / i3 /Pentinum 35W CPU INTEL® Q170 chipset
Memory 2 * Dual channel DDR4-2133MHz SO-DIMM up to 32GB
Storage 1 * 2.5” SATA3 6Gb/s internal drive bay 1 * Full-size mSATA/mini-PCI Express shared slot
Network 2 * Intel GbE (i219LM,i211AT)
Rear Panel I/O 4 * USB 3.0 ports 1 * HDMI , 2 * DP 2 * RJ45 Line-in, Line-out, Mic 6 * COM (COM2 support RS232/422/485) 2 * Antenna holes 1 * DC-in jack
Front Panel I/O 1 * Power button 1 * HDD LED 2 * USB 2.0 ports
Power Source 19V 6.3A 120W AC to DC Adapter
Compliance CE, FCC, RoHS, ErP Ready
Temperature Operating Temperature: 0 ~ 40 º C Storage Temperature: -10 ~ 75 º C
Dimensions 260 (W) x 208 (D) x 58.5 (H) mm
Packing Net Weight: 4.2KG Gross Weight: 5KG Color Box dimension: 406 (W) * 148 (D) * 380 (H) mm
OS Support Windows 7, Windows 8.1, Windows 10, Linux
Accessories Wall mount bracket & DIN Rail Clip
