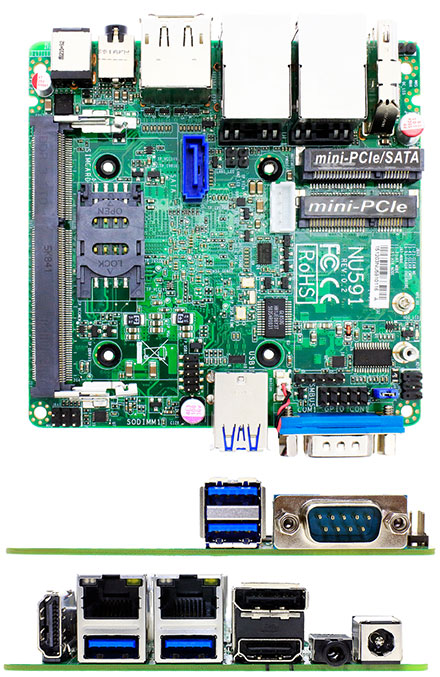

Jetway NU591R-3160 (Intel Braswell)

Jetway NU591R-3160 (Intel Braswell)

  • Intel® Braswell-N3160 Processor
  • 1 * DDR3L SO-DIMM up to 8GB
  • Support 2 * HDMI 1.4b & 1 * DP 1.2 total 3 Independent Displays
  • Intel i211AT PCIe GbE, 2 * RJ45 ports
  • Integrated Realtek ALC662VD Audio CODEC with 4-CH
  • Support 1 * Serial ATAIII (6Gb/s)
  • 4 * External USB3.0 & 2 * Internal USB1.1/2.0
  • 1 * External COM Port Support RS232/422/485
  • 1 * full size mPCIe (shared with mSATA) & 1 * half size
  • 1 * SIM Card Holder
  • NUC Form Factor (101 mm * 101 mm)


Share

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
 Form Factor
Dimensions - NUC (101 * 101mm)
 Processor System
CPU - Intel Braswell CPU (default : N3160 processor)
Core Number - N3160 : 4
Max Speed - N3160 : 2.24GHz
L2 Cache - N3160 : 2MB
Chipset - SoC
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
Mini-PCIe - 2 (1 * full size shared with mSATA & 1 half size)
mSATA - 1 (Shared with full size Mini PCIe)
PCIe - 0
SIM card holder - 1
 Memory
Technology - 1 * DDR3L 1600 MHz SDRAM
Max. - 8 GB
Socket - 1 * SO-DIMM
 Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 0
DVI-D - 0
LVDS - 0
HDMI - 2 (Max.Resolution : 1920 * 1080@60Hz)
Display Port - 1 (Max.Resolution : 3840 * 2160@30Hz)
MultiDisplay - Yes ( Triple Independent Display )
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - PCIe GbE LAN : Intel i211AT
Connector - 2 * RJ 45
Audio
CODEC - HD Audio : Realtek ALC662VD
Channel - 4 Channel
 SATA
Max Data Transfer Rate - 1 * SATAIII (6.0Gb/s)
RAID - No
 Rear I/O
VGA - 0
DVI-D - 0
HDMI - 2
Display Port - 1
Ethernet - 2
USB - 4 * USB 3.0
Audio - 1 ( Combo Jack: Line-out & MIC )
Serial - 1 ( Support RS232/422/485 )
PS2 - 0
DC-input - 1
 Internal Connector
VGA - 0
USB - 2 * USB 2.0
LVDS / inverter - 0
Serial - 0
SATA - 1 SATAIII (6.0Gb/s)
mPCIe - 2 (1 * full size shared with mSATA & 1 * half size)
mSATA - 1 (Shared with full size Mini PCIe)
M.2 - 0
SIM card holder - 1
Chassis intrusion - 1
PS/2 - 0
GPIO - 1 ( 4in/4 out)
SMBUS/ I2C - 1 ( SMBUS)
Audio Header - 1 ( Line Out & MIC)
Audio Amplifier Header - 0
AT mode - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - +12V DC-in Power jack
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
