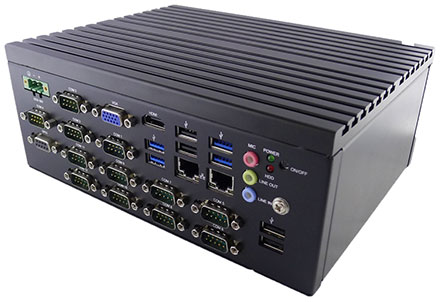

Jetway HM-2010 (Intel Apollo Lake) [12x COM, 4GB RAM]

Jetway HM-2010 (Intel Apollo Lake) [12x COM, 4GB RAM]

Minimum order quantity 200 units.

  • Intel® Apollo lake-J3455/1.5GHz/QC Processor
  • Onboard 4G DDR3L/1600Mhz DRAM（Max 8GB）
  • 2 x Intel® i211AT 10/100/1000Base-T Ethernet
  • 12 x RS-232/ 485 ports with automatic flow control
  • 12 x COM support 5V/12V voltage regulation
  • VGA,HDMI support 2 x independent displays
  • Audio with MIC, Line in, Line out
  • 8 x USB ports (4 x USB3.0)
  • 8 bit GPIO support 5V/12V
  • The system support cableless and Fanless
  • 9~36V wide input voltage can meet the needs of different industries


Share

829.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
 General
Certification - FCC, CE, ROHS
Dimensions(W x D x H) - 223x170x87.5mm
Mounting - Stand mount, Enclosure mount
Weight(Net) - 1.8Kg
Power Requirements - 9~36VDC
Power Consumption - Typical 11.3W, Max. 20.2W
OS Support - Windows 10, Linux
 Hardware
BIOS - AMI 128Mbit Flash BIOS
CPU - Intel® Apollo Lake J3455/1.50GHz/QC Processor
System Chip - Intel® Apollo Lake J3455 SOC
Memory - Onboard Samsung 4GB DDR3L/1600MHz Dram (Max 8GB)
Graphics - Intel® HD Graphics 500
Ethernet - 2* Intel® i211AT GbE
Storage - 1* built in 2.5” SATA HDD bracket
- 1* M.2 socket (2242/2260/2280 size)
Expansion - 1* Full size Mini PCI-e
 I/O Interface
Power Connector - 1 x 3 Pin, terminal Block with lock
Serial Port - 12 x RS-232/485 with DB9 connectors, automatic RS-485 data flow control
- Support 5V/12V voltage regulation
Display - 1 x VGA, support 1920 x 1200@60Hz
- 1 x HDMI 1.4b, support 3840 x 2160@30Hz
LAN Port - 2 x RJ45, 10/100/1000 Mbps
USB Port - 4 x USB3.0 Ports, 4 x USB2.0 Ports
Audio - MIC, Line-in, Line-out
Digital I/O - 8 bit programmable general purpose input/output
- Support 5V/12V voltage regulation
Power Button - 1 x Power Button
Rest Button - NA
LED - 1 x Power LED, 1 x HDD LED
 Environment
Temperature - Operating: -10°C ~ 60°C
- Storage: -20°C ~ 70°C
Relative Humidity - 10~90% RH, non-condensing
Vibration Protection - Operating , IEC 60068-2-64-2008
- 5.1Grms, random,5~500Hz,1hr/axes（SSD）
Shock Protection - Operating , IEC 60068-2-27-2008
- 30G,half sine wave,11ms(SSD)
CE Protection - EN 55032 : 2015
- EN 55024 : 2010 + A1 : 2015
- EN 61000-3-2 : 2014
- EN 61000-3-3 : 2013
