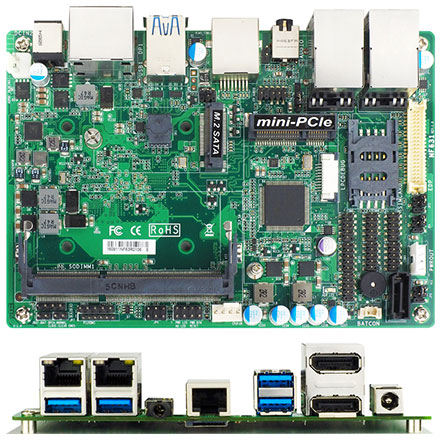

Jetway JNF631-4200 (Intel Apollo Lake)

Intel® Apollo Lake Series Processor
Support 1 * DDR3L SO-DIMM, up to 8GB (option) to secure customers data
Support 2 * Display Port & 1 * eDP port
Support Triple Display, max 4K@60Hz resolution
1 * External RS232(RJ45 Type) & 5 * Internal COM (COM 2 support RS232/422/485)
4 * External USB3.0 & 2 * Internal USB2.0
1 * Full size Mini PCIe , 1 * M.2 SATA interface
SIM card holder & micro SD socket

The JETWAY NF631 series are 3.5” form factor board adopts the Intel® Apollo Lake N3350/N4200 SoC Processor. The board supports one 204-pins SO-DIMM DDR3L memory, up to 8GB. Featuring the integrated Intel® i211AT Gigabit Ethernet controller for Gigabit Ethernet connection, the NF631 offers two 10/100/1000Base-TX Ethernet devices for network transmission. One SATAIII (6Gb/s) interface, micro SD socket and one M.2 (M-key, 2242) interface offer ample storage options. One Mini PCIe interface and SIM card holder are for 3G/LTE connection. Four USB3.0 ports, two USB2.0 ports and six COM ports provide versatile expansion. The NF631 offers two DP and one eDP ports which can support triple independent output and display up to 4Kx2K@60Hz resolution. Because of these features, NF631 is suitable for digital signage or kiosk or industry use.

Form Factor
Dimensions	– 3.5” (5.8-in * 4.0-in, 148 * 102mm)
Processor System
CPU	– Intel^® Apollo Lake series Processor
Core Number	– (by CPU)
Max Speed	– (by CPU)
L2 Cache	– (by CPU)
Chipset	– SoC
BIOS	– AMI Flash ROM
Expansion Slot
Mini-PCIe	– 1 (full size)
mSATA	– 0
PCIe	– 0
M.2	– 1 (M key 2242)
SIM Card Holder	– 1
Memory
Technology	– DDR3L 1867MHz SDRAM
Max.	– 8GB
Socket	– 1 * SO-DIMM
Graphics
Controller	– Intel® HD Graphics
VRAM	– Shared Memory
VGA	– 0
LVDS	– 0
eDP 1.3	– 1 (Max. Resolution : 4096 * 2160@60Hz)
HDMI 1.4	– 0
DisplayPort	– 2 (Max. Resolution : 4096*2160@60Hz)
MultiDisplay	– Triple Display
Ethernet
Ethernet	– 10/100/1000 Mbps
Controller	– Intel i211AT Gigabit LAN
Connector	– 2 * RJ 45
Audio
CODEC	– HD Audio : Realtek ALC662
Channel	– 2 Channel (combo Line Out + Mic)
SATA
Max Data Transfer Rate	– 1 * SATAIII (6.0Gb/s)
Rear I/O
VGA	– 0
DisplayPort	– 2
Ethernet	– 2
USB	– 4 * USB 3.0
Audio	– 1 (Line out + MIC combo)
Serial / Parallel	– 1 (RJ-45 type) / 0
PS2	– 0
DC-input	– 1
Internal Connector
USB	– 2 * USB 2.0
PS/2	– 1
LVDS / inverter	– 0
eDP	– 1
Serial	– 5 (4 * RS232 , COM 2 support RS232/422/485)
SATA	– 1 * SATAIII (6.0Gb/s)
mPCIe	– 1 (full size)
mSATA	– 0
M.2	– 1 (M key-2242)
GPIO	– 1 (8 bit)
Chassis intrusion	– 1
Audio Header	– 1
SMBUS/ I2C	– 1
AT mode	– 1
TPM Header	– 0
Others	– 1 * micro SD card slot
Watchdog Timer
Output	– From Super I/O to drag RESETCON#
Interval	– 256 segments (10sec ~ 255min)
Power Requirements
Input PWR	– 12V DC-in
Power On	AT/ATX Supported – AT : Directly PWR on as Power input ready – ATX: Press Button to PWR on after Power input ready
Certifications
Certifications	– CE, FCC, RoHS, REACH
Environment
Temperature	– Operating: 0°C – 60°C
Temperature	– Storage: -20°C – 85°C
Warranty
Warranty	– 2 Years Limited Warranty

Data sheet	Download (PDF)
Data sheet	Print view
