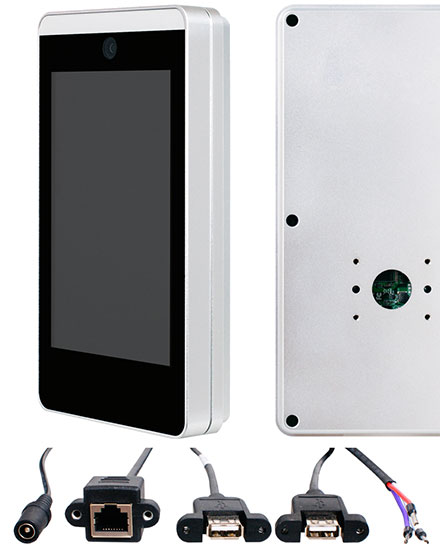

Jetway FRG1-3288 (Face Recognition system)

Jetway FRG1-3288 (Face Recognition system)

  • 7.0”400 nits high brightness TFT LCD with LED backlight
  • Alloy aluminum structure
  • Camera Support superior low-light performance
  • Camera Support high dynamic range imaging
  • Support Face Recognition Living Body
  • Face Recognition less than 0.5sec
  • Support 30,000 face data base on board
  • 12V DC-in


Share

598.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
 Display
Display Type – 7″ With LED Backlight
Brightness – 400 cd/m²
Display Color – 16.7M
Resolution – 800 x 1280 @ 60Hz
Viewing Angle (H/V) – 170°/170°
Pixel Pitch – 0.039 x 0.118 mm
Aspect Ratio – 10:16
Contrast Ratio – 800:1
Response Time – 20 ms
 Screen
Type – Glass
 CASE
Panel Material – Aluminum
Case Material -Aluminum
Color – Silver
Coating Requirement – Oxidation treatment
 Main System
CPU – Rockchip® ARM Cortex A17 RK3288 Quad Cores 1.8GHz
RAM – 2G 1333MHz DDR3L DRAM Max 4GB
Flash ROM – 8GB Max 64GB
Storage – 1* Micro SD Card Socket (INT)
Watchdog Timer – 256 levels, 0~255 sec.
Fill Light – 1 (Life time: > 30,000 Hours)
Camera – 200W Full HD
OS Support – Android 5.1
 I/O Connector
Cable – 1* USB2.0
– 1* OTG
– 1* RJ45(10/100/1000Mbps Ethernet)
– 1* DC Jack
– 1* Switch Control (3Pin Cable)
 Power
Power Input – AC version: 100 ~ 240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse
Power Consumption – 11.5W
 Dimension
Case Dimensions – 221.0 * 120.0 * 36.0 mm
 Certifications
Certifications – RoHS
 Environment
Temperature – Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 85° C
Shock – Operating: 15G，11ms duration
Vibration – Operating: 5~500Hz/1 Grms
 Warranty
Warranty – 1 Year Limited Warranty
Data sheet Download (PDF)
Data sheet Print view
