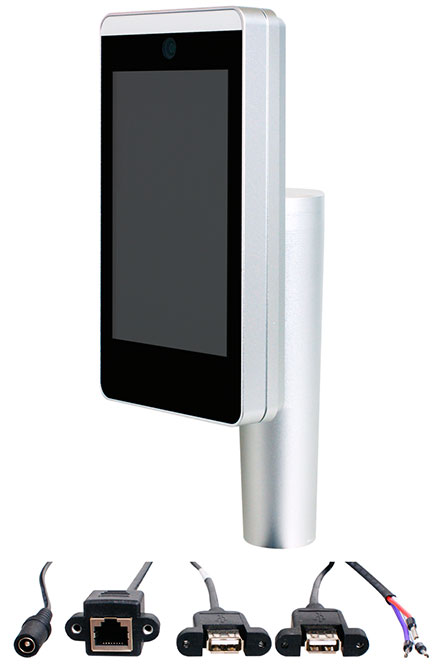

Jetway FRG1-3288S (Face Recognition system)

639.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Display
Display Type	– 7″ With LED Backlight
Brightness	– 400 cd/m²
Display Color	– 16.7M
Resolution	– 800 x 1280 @ 60Hz
Viewing Angle (H/V)	– 170°/170°
Pixel Pitch	– 0.039 x 0.118 mm
Aspect Ratio	– 10:16
Contrast Ratio	– 800:1
Response Time	– 20 ms
Screen
Type	– Glass
CASE
Panel Material	– Aluminum
Case Material	– Aluminum
Color	– Silver
Coating Requirement	– Oxidation treatment
Stand	– 15° up and down adjustment
Main System
CPU	– Rockchip® ARM Cortex A17 RK3288 Quad Cores 1.8GHz
RAM	– 2G 1333MHz DDR3L DRAM Max 4GB
Flash ROM	– 8GB Max 64GB
Storage	– 1* Micro SD Card Socket (INT)
Watchdog Timer	– 256 levels, 0~255 sec.
Fill Light	– 1 (Life time: > 30,000 Hours)
Camera	– 200W Full HD
OS Support	– Android 5.1
I/O Connector
Cable	– 1* USB2.0 – 1* OTG – 1* RJ45(10/100/1000Mbps Ethernet) – 1* DC Jack – 1* Switch Control (3Pin Cable)
Power
Power Input	– AC version: 100 ~ 240V AC-DC 60W power adapter or – DC version: 12VDC with over current protection fuse
Power Consumption	– 11.5W
Dimension
Case Dimensions	– 221.0 * 120.0 * 36.0 mm
Certifications
Certifications	– RoHS
Environment
Temperature	– Operating Temperature: 0 ~ 60° C – Storage Temperature: -20 ~ 85° C
Shock	– Operating: 15G，11ms duration
Vibration	– Operating: 5~500Hz/1 Grms
Warranty
Warranty	– 1 Year Limited Warranty
