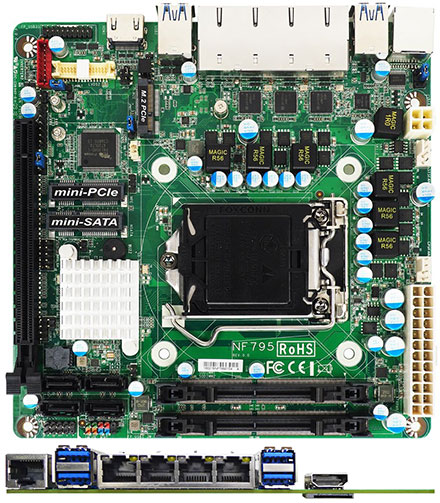

Jetway JNF795T2-Q170 (Intel Kabylake)

Jetway JNF795<b>T2</b>-Q170 (Intel Kabylake)
  • TPM onboard !


  • Intel® Skylake/Kabylake Processor (TDP 65W)
  • 2 * DDR4 SO-DIMM up to 32 GB
  • 4 * 10/100/1000 Base-TX Ethernet Ports
  • 1 * HDMI, 1 * 24-bits Dual CH LVDS
  • 1 * COM(RJ45 type), 6 * USB3.0 & 2 * USB2.0
  • 1 * PCIe x16 slot, 1 * mSATA (full size) , 1* Mini PCIe slot (half size), 1 * SIM card slot, 1 * M.2 (2230, E-key)
  • 4 * SATA III (6Gb/s) support RAID 0, 1, 5, 10
  • Support TPM1.2/2.0 (on board)


Share

349.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
 Model / Part Number
Model – JNF795-Q170
Part Number – JNF795-Q170
 Form Factor
Dimensions – Thin Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
 Processor System
CPU – Intel® LGA1151 SKylake/Kabylake Processor (Max. TDP 65W)
Core Number – (by CPU)
Max Speed – (by CPU)
L2 Cache – (by CPU)
Chipset – Q170
BIOS – AMI Flash ROM
 Expansion Slot
Mini-PCIe – 1 (half size)
mSATA – 1 (full size)
PCIe – 1 (PCIex16 slot)
M.2 – 1 (2230, E-key)
SIM Card Holder – 1
 Memory
Technology – Dual CH DDR4 SDRAM
Max. – 32GB
Socket – 2 * SO-DIMM
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 0
LVDS – 1
eDP – 0
HDMI 1.4 – 1 (Max Resolution : 4096×2304@24Hz)
DisplayPort – 0
MultiDisplay – Dual Displays
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – 4 * Intel GbE (1 * i219LM, 3 * i211AT)
Connector – 4 * RJ45
 Audio
CODEC – N/A
Channel – N/A
 SATA
Max Data Transfer Rate – 4 * SATAIII support RAID 0, 1, 5, 10
 Rear I/O
VGA – 0
HDMI – 1
DisplayPort – 0
Ethernet – 4
USB – 4 * USB 3.0
Audio – 0
Serial – 1 (RJ45 type)
SIM card slot – 1 (bottom side)
DC-input – 0
 Internal Connector
USB – 2 * USB3.0, 2 * USB 2.0
PS/2 – 1
LVDS / inverter – 1
eDP – 0
VGA – 0
Serial – 0
SATA – 4 * SATAIII
mPCIe – 1 (half size)
mSATA – 1 (full size)
M.2 – 1 (2230, E-key)
GPIO – 1 (8 bit)
Chassis intrusion – 1
Audio Header – 0
SMBUS/ I2C – 0
AT mode – 1
TPM – 1 (on board option)
Others – N/A
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (10sec ~ 255min)
 Power Requirements
Input PWR – ATX PWR (4+24 pin)
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, LVD, RoHS, REACH
 Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
