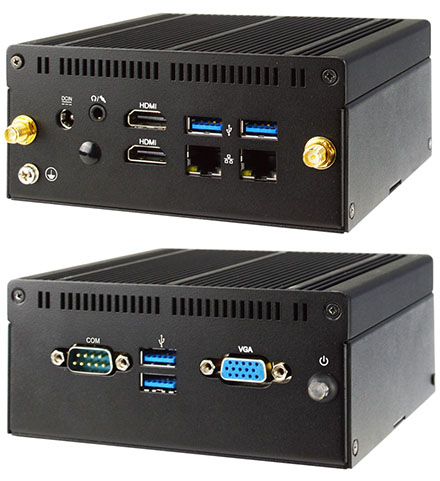

Jetway HBFBU691-3455-B (Intel Apollo Lake)

Jetway HBFBU691-3455-B (Intel Apollo Lake)

  • Intel® Apollo Lake SoC Processor
  • Support 1* DDR3L 1866MHz SO-DIMM up to 8GB
  • 1* VGA, 2* HDMI
  • 4* USB3.0, 1* RS232/422/485, 2* GbE, 1* Audio
  • 12V DC-in


Share

349.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
  • Assembling options
MB Model – JNU691B-3455
Part No. – HBFBU691-3455-B
– HBFBU691Z-3455-B (support Mini PCIe ac WiFi)
BIOS – AMI UEFI
CPU/Chipset – Intel® Apollo Lake J3455 SoC Processor (Quad Core, 1.50/2.30 GHz)
Memory – Support 1 * DDR3L 1866MHz SO-DIMM up to 8GB
Network – 2 * RJ45 (Realtek RTL8111H GbE)
– Mini PCIe ac Wifi card (HBFBU691Z-3455-B only)
Storage – Support 1 * mSATA (full size) Device
Expansion – 1 * half size Mini PCIe slot for WiFi module
Audio – HD Audio: Realtek ALC662VD
Rear Panel I/O – 2 * USB 3.0
– 2 * HDMI (Max. resolution: 3840×2160@30Hz)
– 2 * GbE
– 1 * GND hold
– 1 * Line-out/MIC combo
– 1 * DC-in jack
Front Panel I/O – 1 * VGA (Max. resolution: 1920×1200@60Hz)
– 2 * USB 3.0
– 1 * COM (RS232/422/485)
– 1 * power button
Power Source – Adapter : AC 90~240V / DC12V / 40W
– MB : 12V DC input
Compliance – CE, FCC, RoHS, ErP
Temperature – Operating Temperature: 0 ~ 50° C with air flow (mSATA)
– Storage Temperature: -10 ~ 70° C
– Humidity : 90%, non-condensing
Dimensions – 124(W) x 109 (D) x 55 (H) mm
