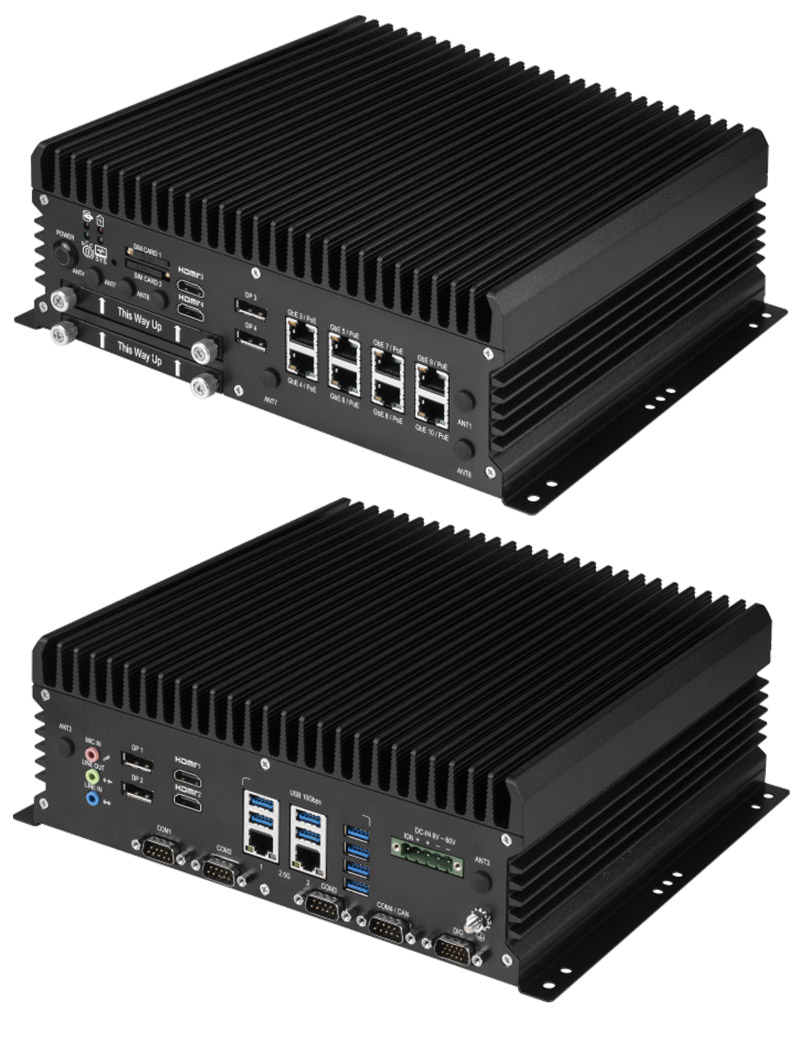

FleetPC-13-RTX2000 Car-PC (Intel Core i9-14900T, 9-60V Automotive Powersupply, 2x LAN, 2x HDMI, 2x dP) [FANLESS]

FleetPC-13-RTX2000 Car-PC (Intel Core i9-14900T, 9-60V Automotive Powersupply, 2x LAN, 2x HDMI, 2x dP) [<b>FANLESS</b>]
  • Intel Core i9-14900T !
  • ABOX-5220G-i9-RTX2000 !
  • NVIDIA RTX™ Embedded 2000 Ada !

  • Intel® Core™ i9-14900T 14th Generation / RTX2000 Ada
  • 2 x TSN Ready 2.5GbE Controller for Time-Sensitive Network
  • 8 x GbE with Optional PoE Support for Easy Connection with IP Camera
  • 8 x DI (9~60VDC), 2 x ADC (9~60VDC), and 4 x DO (5V, 100mA)
  • Certified with CE, FCC, and E-Mark
  • Compliant with EN 50155, EN 45545-2 R25 Standardsg


Share

5249.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart Configurator
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
CPU Intel® Core™ i9 processor 14900T
R680E Chipset
Memory 2 x SO-DIMM Support DDR5-4800 up to 64GB
(ECC Support with ECC DRAM)
Watchdog System power on/off 1 ~ 255 min setting by BIOS
TPM 2.0
Graphics Engine NVIDIA RTX™ Embedded 2000 Ada
LAN 2 x I226-IT 2.5GbE RJ45 and 8 x I210-AT GbE RJ45
(Optional PoE with Total 120W Power Budget and M12 X-coded Connectors)
External I/O Connectors 4 x RS-232/422/485 Serial Port
8 x USB 3.2 Gen 2×1 10Gbps
8 x DI (9~60VDC),  4 x DO (5V, 100mA)
2 x ADC (9~60VDC) 2 x I226-IT 2.5GbE RJ45 and 8 x I210-AT GbE RJ45
(Optional PoE with Total 120W Power Budget and M12 X-coded Connectors) 2 x HDMI®(Maximum Resolution : 4096 x 2160 @ 60Hz)
Additional 2 x HDMI (Maximum Resolution : 4096 x 2160 @ 60Hz) 2 x HDMI®(Maximum Resolution : 4096 x 2160 @ 60Hz)
Additional 2 x DP 1.4 (Maximum Resolution : 7680 x 4320 @ 60Hz)
internal I/O 2 x Mini-PCIe
2 x M.2 3042/52 Key B for WWAN (USB3.0) with Dual SIM Support
1 x M.2 2230 Key E for WiFi
Antenna 8 x Pre-cut Hole for External SMA Antenna
Storage 2 x M.2 2280 Key M for PCIe 4.0 x4 NVMe SSD
1 x M.2 2280 Key M for PCIe 4.0 x4 NVMe or SATA SSD (Auto Dectection)
2 x 2.5” Drive Bay for SATA Type SSD
* RAID 0/1/5 support via Intel® VMD.
Mechanical Aluminum Alloy
Wall-mount
Dimensions 290 x 250 x 98 mm (w/ mounting kit) / 8500g
Operating Temp. -40°C ~ 70°C w/0.6 m/s airflow (for barebone system)
Storage Temp. -40°C ~ 80°C
Enviremetal - Relative Humidity 10% RH – 90% RH (non-condensing) - Vibration: MIL-STD-810G, Method 514.6, Procedure I, Cat.4 (Operating)
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis - Shock: MIL-STD-810G, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating) - Certification: CE, FCC, E-Mark
Compliant with EN 50155, EN 45545-2 R25 Standards
Power DC 9 – 60V Input ( Ignition Management for Variety Vehicle ) - OCP, OVP, Surge and Reversed Polarity Protection - Ignition Detection, and Power off Delay Time Setting by Software Optional Internal Battery Kit for 10 Mins Operating Time (Charging Temp. 0~45°C, Discharging Temp. -10~60°C) * UPS backup time varies depending on actual overall system power consumption and battery is required to be charged before using.
Software Windows 10 IoT Enterprise LTSC
Windows 11 IoT Enterprise LTSC
Ubuntu Desktop 22.04
Data sheet Download (PDF)
Data sheet Print view
